Work and Power

The words work and power are used to describe many different things. The creator of this web page hopes to convey one application, which lies in the realm of physics, of the ambiguous terms, work and power.

Work is done when a force is applied over some distance. W=F*d (where W is work, F is force, and d is distance) is the general equation used to find work.

wIn order to do work on an object, the object has to move. So, holding something in mid-air is not doing work.

wOnly the component of the force vector that is parallel to the distance for which it is applied determines work. Trig functions are useful; force multiplied by the cosine of the angle it makes with the direction of movement is a common method of finding components.

wWork is a scalar value. Although vector values are used to find work, the dot product of the force and direction vectors determines work, and dot products result in scalar values.

wWork is measured with some of the same units as energy. Important ones are Newton-meters (N*m) or joules (J); dyne-centimeters or ergs; and foot-pounds (ft*lb) or foot-pounds.

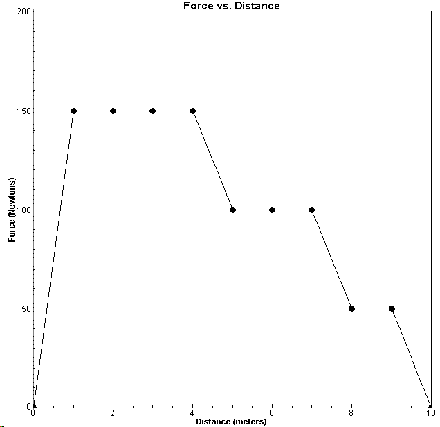

A person pushes some object, let's say a desk across the floor. (Don't worry, the force they are applying is parallel to the floor.) Below is a chart of the data and a graph of the force vs.distance. Distance is in the first column and plotted along the horizontal axis. Force is in the second column and plotted on the vertical axis. The area under this graph is the amount of work done, which adds up to 1000 J. So, the person does a total of 1000 J of work on the desk.

Distance (meters)	Force (Newtons)
0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10	0 150 150 150 150 100 100 100 50 50 0

I put a 25 N force on the books in the picture below and moved them 50cm. My arm is at an angle of 30 degrees to the horizontal. How much work was done on the books?

W=F*d is the necessary equation, but since the force isn't parallel to the distance, W=F*(cos 30)*d is the equation to use. (Cosine finds the horizontal component.) In addition, it is helpful to change the 50cm to meters since the common unit of work is the joule or N*m. 25*(cos30)*0.5=10.8, or 11 J of work.

So, why are work and energy measured in the same units? The work-energy theorem or principle says that the net work done on an object is equal to its change in kinetic energy. In a way this is a definition for kinetic energy, but it also shows the relationship between work and energy. If the net work done on an object is positive, then the object's kinetic energy increases. If net work is negative, then kinetic energy decreases, and if net work is zero, then the kinetic energy is constant.

Average power is the rate at which work is done, or work divided by change in time. It can also be determined by multiplying Force and velocity.

wUnits for power include joules/second or watts, foot-pounds/second, and horsepower. (See history below)

wPower is different than energy. A person can expend much energy, or do lots of work. But, if a person does much work in a short period of time, then he/she will become tired quickly, because more power is required. Energy doesn't have the limitations which power, the rate of work being done, might.

What is the average power expended in the system of pushing a desk from above if the 1000 J of work were expended over 10 seconds?

James Watt (1736-1819) is an important figure of history. He developed steam engines which were significant in the growth of industry and transportation in his country, England and eventually around the world. He defined the units of power. A Watt (W) is a J/s. Through experiments, he determined that a good horse could work at a rate of 360 ft*lbs/s and multiplied it by 1.5 to define another unit of power, the horsepower (hp). It is 550 ft*lbs/s. And, one horsepower is equivalent to 746 W.

Power is related to things beyond physics class. The amount of power that light bulbs require is measured in watts. An engine's power capabilities are measured in horsepower.
